F-500 F-800 F-1000 F-1300 F-1600 mud pump

2016-07-12 10:18      Click£ºtimes
Features of F Series mud pump:

¡ñ General features: Mud pump is rigid and compacted with excellent performance, which is applicable to high pump pressure and large discharge for well rig123.net' target='_blank'>drilling in oil field. These pumps have long stroke range and low numbers of stroke so that it can improve inlet performance of pump and extend life of easy-broken parts, besides, structure of air bag is advanced and reliable.

¡ñ Features of dynamic end: A-gear wheel transmission without slot, alloy steel overall crank shaft, dynamic end is lubricated with forced and splashed lubricating oil.

¡ñ Frame: Frame is welded with steel plate, stress must be removed after welded, it is rigid and powerful, and bearing of crank is made from reinforced steel plate.

¡ñ Pinion shaft: Pinion shaft is made from alloy steel forgings, and A-gear wheel with middle rigid tooth is processed on shaft.

¡ñ Crank shaft: Crank shaft is made from alloy steel forgings, wherein tooth of big wheel is A-tooth and two ends of crank shaft are double column radial ball bearing.

¡ñ Piston: Piston and middle rods are connected with pipe hoop for easy installation.

¡ñ The mud pump meets the API Spec 7K ,is allowed to use the API Monogram.

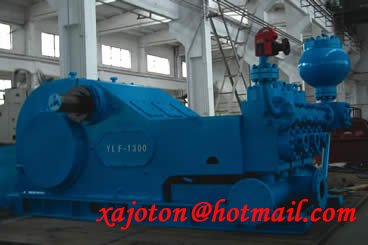

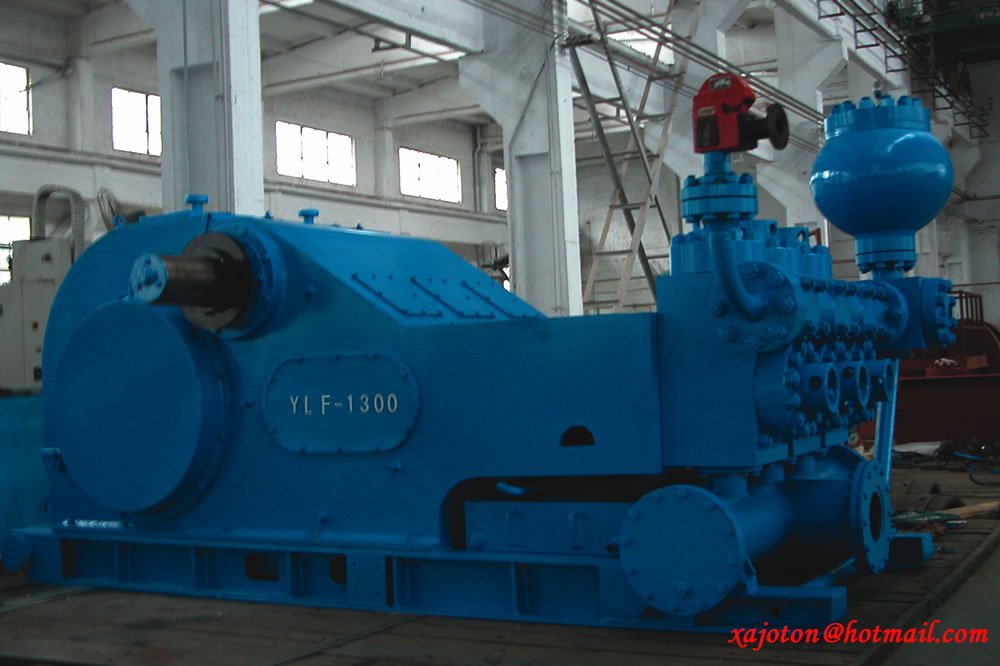

[Click the picture to enlarge]








Performance parameters of mud pump:

Model
F-500
F-800
F-1000
F-1300
F-1600
Rated power¡¡KW
368
588
735
956
1176
Rated stroke times/min
165
150
140
120
120
Maximum cylinder diameter×stroke
¡é170×190.5
¡é170×228.6
¡é170×254
¡é180×304.8
¡é180×304.8
Inlet pipeline
8"
10"
12"
12"
12"
Maximum working pressure (MPa)
26.77
27.26
32.85
30.6
34.3
Maximum displacement L/S
36.72
41.51
43.22
50.41
50.41
Weight Kg
9300
14000
18000
23000
24000
